Volve Heavy Duty Water Tanker Fire Truck with 12000L Water

Name: Volve Heavy Duty Water Tanker Fire Truck with 12000L Water
Brand: CXFIRE
Price: 350 USD

Wholesale Volve Heavy Duty Water Tanker Fire Truck with 12000L Water from china suppliers

Brand Name : CXFIRE

Model Number : SXF5281GXFSG120/V

Certification : CCC, CE, EN, NFPA

Place of Origin : China

MOQ : 1 Unit

Price : USD350,000-USD370,000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per year

Delivery Time : 8-10 months

Packaging Details : Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship

Dimension : 10300mm×2500mm×3600mm

Full Weight : 28000Kgs

Chassis : 6*4 Volve

Engine : 460 Horse Power

Cabin : Double Row Cabin with 4 Doors and 6 seats

Superstructure : Aluminum Alloy Welded Structure

Liquid Tank : 12000 Liters Water Tank and PP Composite

Water Pump : 100L/s @ 10 bar

Roof Water Monitor : 80L/s @ 10 bar with 85m Shoot Distance

Painting : Red color of PPG Brand

Contact Now

1. Introduction

CXFIRE is the largest fire trucks manufacturer in China. Established in 1963. The main manufacturing base is located in Chengdu of Sichuan Province in China with an area of 200,000 square meters and 600 staff members. More than 1000 units fire trucks are produced and sold every year.
SXF5281GXFSG120/V Water Tanker Fire Truck is a usual vehicle used in city fire departments or different industrial areas.

2. Volve Heavy Duty Water Tanker Fire Truck with 12000L Water

Dimensions: 10300mm×2500mm×3600mm
The total mass of full load: Approx. 28000kg
Number of crew: 6
Maximum speed: 85-90km/h
Emission Standard: Euro 3-5
Tank capacity: 12000 Liters Water
Fire pump flow rate: 100L/s @ 1.03Mpa
Fire monitor flow rate: 80 Liters/Second

3. Superstructure of the Heavy Duty Fire Truck

3.1 Aluminum Compartment

Material: All made of high-strength aluminum alloy profiles.
Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
Ladder frame: A set of multifunctional ladder frame is set on the top.
Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.

3.2 Electrical System

Warning light: Long row warning light are set on the top; The control devices are installed in the cab.
Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
Strobe lights: Strobe lights for warning are arranged on the upper part.
Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
Roof lighting: LED lights are provided inside the top of the carriage.
Side Indicater Light: Built-in yellow indicater lights are installed on pedals.

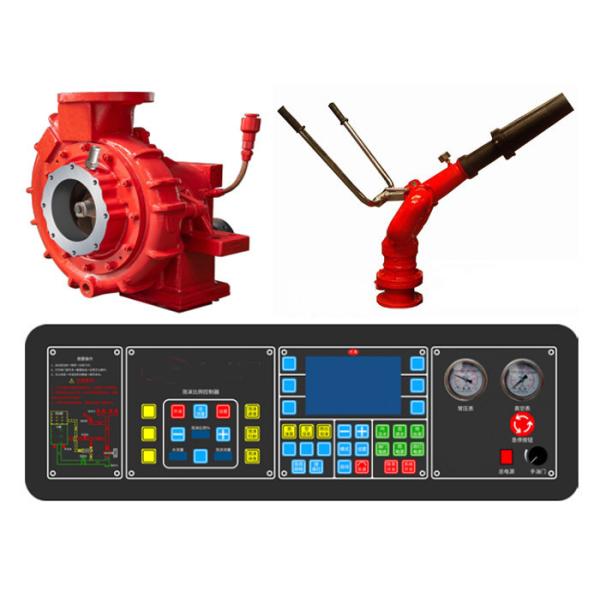

4. Water Tank, Water Pump and Roof Water Monitor

No.	Main Items	Technical Parameters
4.1	Centrifugal Water Pump
4.1.1	Brand	Optional
4.1.2	Model	Optional
4.1.3	Flow Rate	100L/s @ 10.3 bar
4.1.4	Vacuum Pump	Electric vacuum pump
4.1.5	Priming Manner	Automatic
4.1.6	Suction Height	7m
4.1.7	Priming Time	≤60s
4.1.8	Location	Rear-mounted
4.2	Roof Water Monitor
4.2.1	Brand	Optional
4.2.2	Model	Optional
4.2.2	Flow Rate	80L/s @ 10bar
4.2.3	Shoot Range	Water ≥85 m
4.2.4	Location	On the top of the tank
4.2.5	Control Manner	Remote Control
4.2.6	Horizontal Rotation	0°~340°
4.2.7	Pitch Rotation	-15°~60°
4.3	Water Tank
4.3.1	Capacity	Water 12000 Liters
4.3.2	Material	PP composite material and Never in Rust
4.3.3	Structure	1 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 1 Liquid Level Indicators; 1 Water tank Drain Outlets with Valve

5. Pictures of Enterprise

Volve Heavy Duty Water Tanker Fire Truck with 12000L Water
